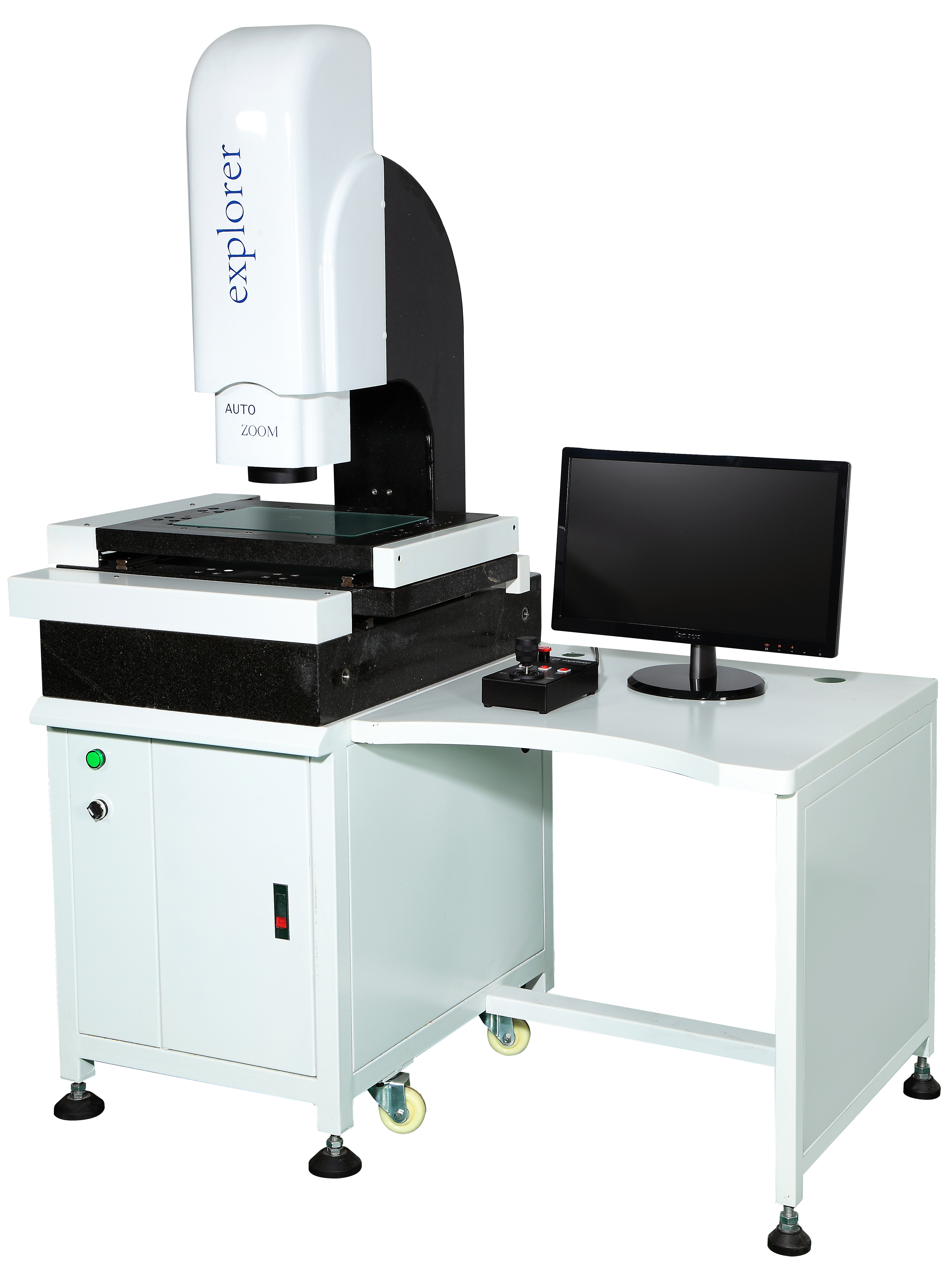

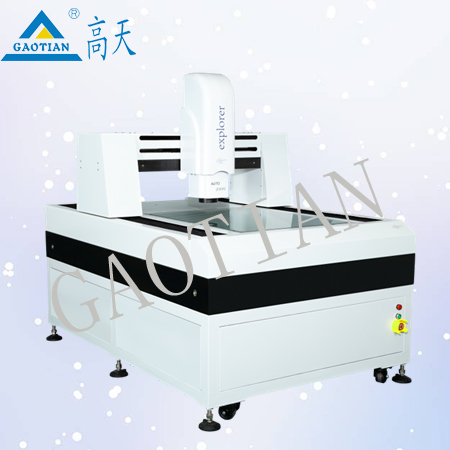

GT-CMC-3020全自動影像測量儀

基本參數Basic parameter

型號 Model	行程 Range	外部尺寸 External size	重量（KG） Weight	承重(KG)Capacity
CNC-3020	300*200*200mm	700*850*1650mm	330	30
測量精度Accuracy	XY軸XY Axis	Z軸 Z Axis
2.5um+L/200	5um+L/200
L代表測量長度L,the measured length
速度   Speed	XY軸XY Axis	Z軸  Z Axis
300mm/s	200mm/s
工作環境Operating environment	溫度Temperature：20℃±2℃ 溫度變化Temperature variation：<2℃/hr 濕度Humidity：50-60%
振動Vibration：<0.002mm/s,<15HZ
電源Power：220V,50HZ,10A
配置清單Configuration list
序號Number	名稱 Item	分項名稱 Description	規格及主要技術參數 Technical specification
1	機器主體     Mechanics	主機Machine	影像測量系統，四軸CNC控制4-axis CNC video measuring machine
2	機器結構Structure	00級濟南青大理石00 Level jinan marble
3	光柵尺Ruler	三軸0.5um分辨率3axis 0.5um resolution
4	導軌Guide	臺灣P級直線導軌Taiwan P level line guide
5	馬達 Motor	XYZ三軸進口高性能伺服電機，雙重閉環控制系統XYZ 3 axis imported high efficient servo motor ,duable closed loop controlled system
6	光學系統      Optical system	攝像機Camera	1/3”CCD彩色工業攝像機 1/3 CCD colorful industrial camera
7	鏡頭Lens	全自動變倍鏡頭Auto-change zoom lens
8	倍率 Multiplying power	光學放大倍率0.7-4.5X Optical magnification 0.7-4.5X 影像放大倍率30-230X Video magnification 30-230x
9	表面光Surface light	三環八驅LED冷光源 3 rings 8octants,LED lighting
10	輪廓光Profile light	LED冷光源LED lighting
11	軟件系統Software system	測量軟件 Measuring software	自主研發的系統 WM-3D Independent made system
12	電控系統Control system	WM電控系統 WM Control system	自主研發 Independently rearched and devoloped
13	附件 Accessories	電腦Computer	聯想電腦Lenovo computer
14	工作臺 Worktable	特制工作臺 Specially made worktable
15	合格證Certification	校準檢驗合格Qualified by WM

>>>測量軟件介紹：附詳細軟件介紹！Software introduce
3D測量軟件主要功能如下: 3 d measurement software main functions are as follows:

(1) 元素測量：measuring element:能測量12種元素（點、直線、圓、圓弧、橢圓、矩形、槽形、○形環、距離、角度、開云線,閉云線）。Can measure the 12 kinds of elements, such as point, line, circle, arc, ellipse, rectangle, trough, o-rings, distance, Angle and open cloud line, closed cloud line).
特點：Features:
測量方法多樣（自動判別測量、采點測量﹐對比測量、公差對比測量。預置元素），可以滿足用戶不同需求，大大提高使用的方便性和測量精度。Measurement method variety (automatic discriminant, mining point measurement, comparison, tolerance contrast measurement. Preset element), can satisfy differentcustomers' needs, greatly improve the ease of use and measuring precision.
單點采集方法有多種﹕可鼠標采點,十字線尋邊采點,放大采點。There are many single point sampling method: the mouse point, cross line edge point, amplified by points.
能測量閉合云線的周長，面積及重心，使用三次插值算法，為目前最準測量云線的方法。Closed to measure the perimeter of the cloud line, area and center of gravity, the use ofthree interpolation algorithm, for the most accurate measuring method of cloud line.
 可以進行框選測量多圓，快速，準確的一次測量多個圓。Can undertake box to choose measurement more round, fast and accuratemeasurement of multiple round at a time.
 測量的數據可以保存為DXF檔，或.BMP圖片，及用戶程序格式。The measured data can be saved as a DXF file, or. BMP images, and the user programformat.
(2)宏測量功能the macro measurement function
 宏測量功能就是，將一些測量，構造命令關聯到一個按鈕上。點擊按鈕，即開始執行宏測量功能，宏測量功能會自動完成構造動作，減少用戶操作鼠標次數，提高工作效率。Macro measurement function is that will be some measure, command associated witha button. Click on the buttonthat starts the macro measurement function, macro measurement function automatically completes the tectonic movement, decrease the times of user mouse operation and improve the work efficiency.
要注意的是：宏測量不同于用戶程序功能，宏測量不會記錄光源，座標位置等測量狀態。運行宏測量功能時，也不會移動工作臺，打光等。軟件提供了16組宏測量功能，用戶可以自己編輯宏測量功能按鈕的圖標。宏測量功能的界面如下: Note: macro measurement is different from the user use the mouse to circle to the edge of the workpiece, can automatically find edgeline, circle or arc. The following figure, will automatically be framed round.
